HDPE elbow price list which is applicable for different kinds of project such as fire fighting systems; sewer mains; water mains; household installations; irrigation lines in rural areas; electrical cable, wires, signal cables and fiber optic line conduits; storm water and drainage lines; and gas mains.

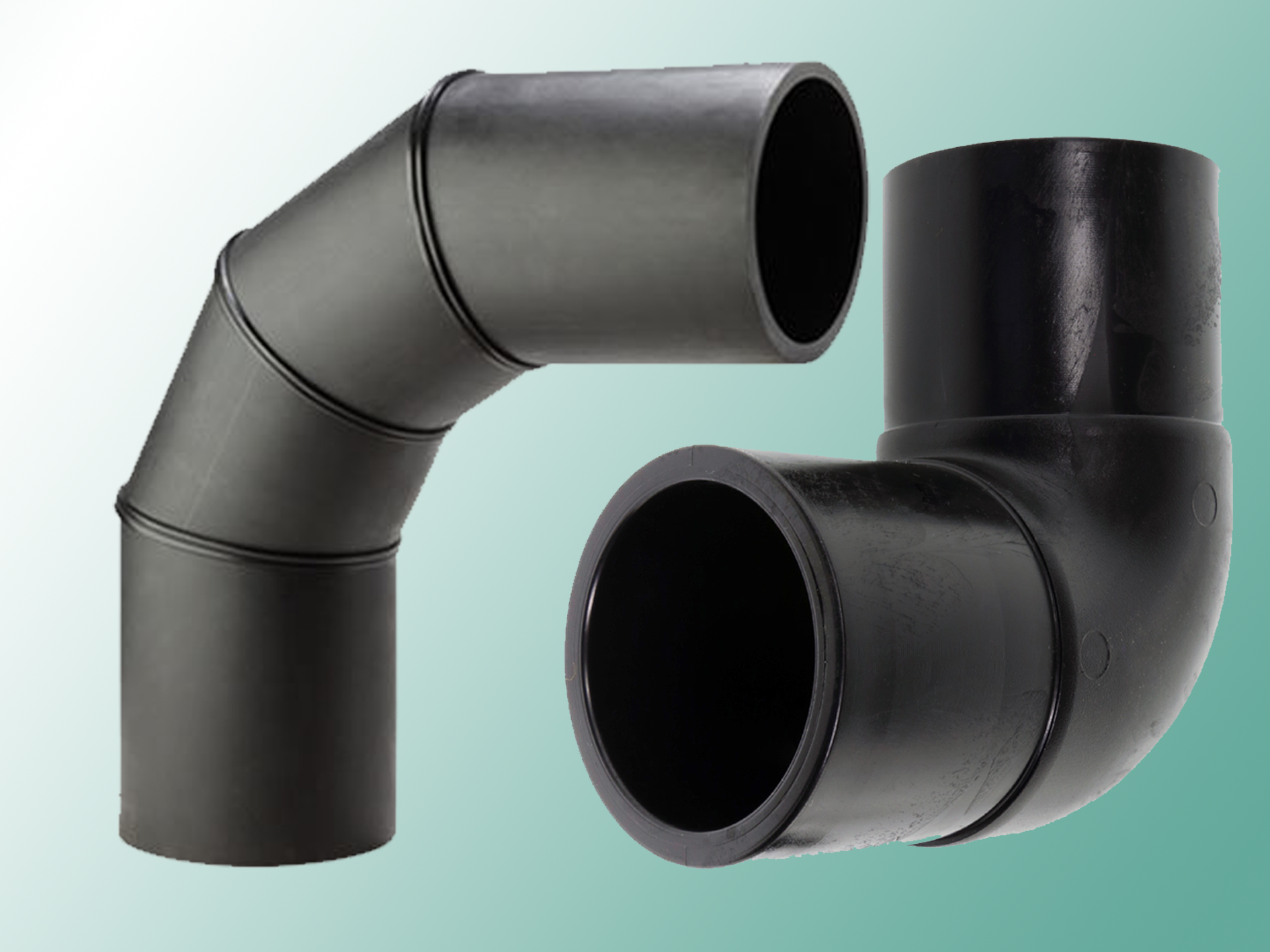

The HDPE elbow price list are divided into two groups: injection molded and fabricated. Injection molded elbow have two types: 90 degrees and 45 degrees. Fabricated elbow have four types: 90 degrees, 60 degrees, 45 degrees and 22.5 degrees. The segmented fabricated elbows are made by cutting HDPE pipes and connected through butt fusion. All the prices listed are in Philippine Peso (Php) with value added tax (VAT) included. The price is per one unit of elbow.
An HDPE elbow is a pre-molded or fabricated bend used to connect two HDPE pipes at a specific angle. It redirects the flow within a piping system while maintaining the overall pressure and structural integrity.
Moreover, since elbows are made from the same high-density polyethylene material as the pipes, they offer excellent flexibility, chemical resistance, and long service life—especially when installed using heat fusion or electrofusion techniques.
Common Applications of HDPE Elbows
HDPE elbows are widely used in various sectors, thanks to their strength and ease of installation:
- 🚰 Water distribution networks – for bends in supply and service lines
- 💧 Irrigation systems – to reroute flow in agricultural fields
- 🌧️ Drainage and sewer pipelines – to navigate changes in terrain or layout
- 🏭 Industrial piping – for transporting chemicals and wastewater
- 🛤️ Underground conduits – where flexibility and corrosion resistance are essential
In addition, elbows help reduce pressure loss and turbulence by providing a smoother transition compared to sharp turns or rigid alternatives.
Sizes, Angles, and Connection Types
HDPE elbows are available in various configurations to match different pipeline designs:
- Standard Angles:
- 45 degrees and 90 degrees are the most commonly used
- 22.5° and 60° options may also be available for specific applications
- Sizes:
- Match pipe diameters from 20mm up to 1200mm
- Connection Types:
- Butt fusion, electrofusion, or flange-end options based on installation needs
- Pressure Ratings:
- Compatible with common SDR ratings such as SDR11, SDR17, and SDR21
Furthermore, elbows may be injection-molded for smaller sizes or fabricated from pipe sections for larger diameters.
What Affects HDPE Elbow Pricing?
The price of an HDPE elbow depends on multiple factors:
- Pipe diameter and wall thickness
- Angle of the elbow (e.g., 90° vs. 45°)
- Fabrication method (molded vs. segmented)
- Type of joint (fusion vs. mechanical)
- Brand, country of origin, and local availability
- Quantity and project requirements
As a result, large-diameter or fabricated elbows tend to be more expensive due to higher material and labor costs.
For other high density polyethylene materials, please check below the list of items:
– Straight Pipe, HDPE price list, please see the link: HDPE Pipe Price List
– Tee Fitting, HDPE price list, please see the link: HDPE Tee Price List
– Reducer Fitting, HDPE price list, please see the link: HDPE Reducer Price List
– End Cap Fitting, HDPE price list, please see the link: HDPE End Cap Price List
– Stub End Fitting, HDPE price list, please see the link: HDPE Stub End Price List
HDPE Elbow Price – Molded
Below is the most recent pricing information for HDPE elbows commonly used in waterline, irrigation, and sewer projects in the Philippines. This guide helps project managers, estimators, and buyers plan their budgets more effectively.
Injection Molded Type
| ITEM NO. | NOMINAL DIAMETER / SIZE | MOULDED ELBOW FITTINGS | |
|---|---|---|---|
| 90 DEG | 45 DEG | ||
| 1 | HDPE PIPE, PE100, DN75 (2-1/2″) | 326 | 282 |
| 2 | HDPE PIPE, PE100, DN90 (3″) | 326 | 326 |
| 3 | HDPE PIPE, PE100, DN110 (4″) | 534 | 463 |
| 4 | HDPE PIPE, PE100, DN160 (6″) | 2,617 | 1,299 |
| 5 | HDPE PIPE, PE100, DN225 (8″) | 5,720 | 4,117 |
| 6 | HDPE PIPE, PE100, DN280 (10″) | 12,254 | 8,644 |
| 7 | HDPE PIPE, PE100, DN315 (12″) | 15,401 | 9,321 |
| 8 | HDPE PIPE, PE100, DN355 (14″) | 19,975 | N/A |
| 9 | HDPE PIPE, PE100, DN400 (16″) | 22,643 | N/A |
| 10 | HDPE PIPE, PE100, DN450 (18″) | 36,654 | N/A |
| 11 | HDPE PIPE, PE100, DN500 (20″) | 41,735 | N/A |
| 12 | HDPE PIPE, PE100, DN560 (22″) | 57,765 | N/A |
| 13 | HDPE PIPE, PE100, DN630 (24″) | 81,458 | N/A |
Fabricated Type
| ITEM NO. | NOMINAL DIAMETER / SIZE | FABRICATED ELBOW FITTINGS | |||
|---|---|---|---|---|---|
| 90 DEG | 60 DEG | 45 DEG | 22.5 DEG | ||
| 1 | HDPE PIPE, PE100, DN20 (1/2″) | 11 | 10 | 9 | 8 |
| 2 | HDPE PIPE, PE100, DN25 (3/4″) | 18 | 16 | 15 | 13 |
| 3 | HDPE PIPE, PE100, DN32 (1″) | 36 | 32 | 31 | 27 |
| 4 | HDPE PIPE, PE100, DN40 (1-1/4″) | 65 | 57 | 56 | 47 |
| 5 | HDPE PIPE, PE100, DN50 (1-1/2″) | 76 | 104 | 103 | 88 |
| 6 | HDPE PIPE, PE100, DN63 (2″) | 229 | 204 | 202 | 175 |
| 7 | HDPE PIPE, PE100, DN75 (2-1/2″) | 396 | 347 | 344 | 294 |
| 8 | HDPE PIPE, PE100, DN90 (3″) | 660 | 578 | 576 | 492 |
| 9 | HDPE PIPE, PE100, DN110 (4″) | 1,288 | 1,025 | 1,018 | 850 |
| 10 | HDPE PIPE, PE100, DN160 (6″) | 3,468 | 2,956 | 2,942 | 2,415 |
| 11 | HDPE PIPE, PE100, DN225 (8″) | 8,235 | 7,006 | 6,992 | 5,743 |
| 12 | HDPE PIPE, PE100, DN280 (10″) | 14,035 | 11,937 | 11,896 | 9,764 |
| 13 | HDPE PIPE, PE100, DN315 (12″) | 21,121 | 18,009 | 17,906 | 14,691 |
| 14 | HDPE PIPE, PE100, DN355 (14″) | 29,753 | 27,090 | 27,007 | 24,261 |
| 15 | HDPE PIPE, PE100, DN400 (16″) | 44,533 | 40,572 | 40,379 | 36,225 |
In addition, some suppliers may offer custom-fabricated elbows or complete HDPE fitting packages based on your project specifications.
Handling and Installation Tips
To ensure proper function and longevity, follow these best practices:
- Use clean, aligned surfaces before fusion or welding
- Always match the elbow’s SDR rating with the pipe’s SDR rating
- Store in shaded areas to protect from UV exposure
- Avoid sharp impacts or crushing during transport and handling
- Conduct pressure testing after installation to confirm system integrity
Moreover, consult the manufacturer’s guidelines when installing elbows in high-pressure or chemical environments to ensure compliance and safety.
Conclusion
In summary, HDPE elbows are critical to building efficient and long-lasting piping systems—especially where direction changes are necessary. Their durability, ease of fusion, and corrosion resistance make them ideal for a wide range of fluid transport applications.
Therefore, referring to an up-to-date HDPE elbow price list allows contractors and engineers to manage costs, reduce waste, and streamline installation planning.
